General Specifications

Power Requirements

100 V ac to 240 V ac (-15 %, +10 %), 50 Hz to 60 Hz

Maximum Power Consumption

Controller: 110 VA
Intensifier: 250 VA

Operating Temperature Range

0 °C to 50 °C

Storage Temperature Range

-30 °C to 71 °C

Humidity

5 % to 95 %

Vibration

Meets MIL-T-28800D

Altitude (operation)

2,000 m

Weight

Controller: 12 kg (27 lb)
Intensifier: 14 kg (31 lb)
Accessory Kit with Handheld Control: 12 kg (27 lb)
Nitrogen Cylinder: 12 kg (26 lb)

Dimensions

Controller, Intensifier, and Accessory Kit: 32.5 cm Height x 30.5 cm Width x 30.5 cm Depth (13 in Height x 12 in Width x 12 in Depth)
Nitrogen Cylinder: 68.5 cm Height x 17.8 cm Diameter (27 in Height x 7 in Diameter)

Remote Communications Interfaces

RS-232, USB type B, IEEE-488.2, USB type A (PRINTER port only)

Pressure Range

3.5 kPa (0.5 psi) absolute to 70 MPa (10,000 psi)

Operating Medium

Dry nitrogen supply, or ambient air compressed by on-board pump

Warm-up Time

15 minutes from power on, after at least 60 minutes ambient temperature acclimation time within the working temperature range

Unit

Name

Type of Fittings [1]

Maximum Working
Pressure Limit

Controller

TEST Port

IQC70 female, located on CPS

70 MPa (10,000 psi)

SUPPLY Port

IQC70 female

Hose Purge

IQC70 male

Intensifier

SUPPLY Port

IQC70 female

70 MPa (10,000 psi)

OUTLET Port

IQC70 female

Nitrogen Cylinder

VALVE

CGA580 nipple

40 MPa (6,000 psi)

Regulator Outlet

Miniature QC female

20 MPa (3,000 psi)

Notes:

1.    ICQ70 is a Fluke Calibration interlocking quick connection nominally rated to 70 MPa (10,000 psi).

Name

Type of Fittings[1]

Maximum Working
Pressure Limit[2]

FITTING, 1/2 MALE PIPE THREAD (NPT)

IQC70 male

70 MPa (10,000 psi)

FITTING, 1/4 MALE PIPE THREAD (NPT)

FITTING, 1/8 MALE PIPE THREAD (NPT)

FITTING, 1/2 FEMALE PIPE THREAD (NPT)

FITTING, 1/4 FEMALE PIPE THREAD (NPT)

FITTING, 1/8 FEMALE PIPE THREAD (NPT)

FITTING, HF4 EQUIVALENT

FITTING, AN6 FEMALE

FITTING, AN4 FEMALE

FITTING, HM4 EQUIVALENT

FITTING, AN6 MALE

FITTING, AN4 MALE

FITTING,1/4 ID HOSE BARB

IQC70 male

700 kPa (100 psi)

FITTING, 1/8 ID HOSE BARB

IQC70 male

700 kPa (100 psi)

Notes:

1.    IQC70 is a Fluke Calibration interlocking quick connection nominally rated to 70 MPa (10,000 psi).

2.    Working pressures indicated are for adaptors only. Actual pressure capability may be limited by the integrity or maximum working pressure of the fitting to which the adaptor is connected.

Name

Type of Fittings [1]

Maximum Working
Pressure Limit

Test Hose 3 m (10 ft)

IQC70 male at one end, and IQC70 female coupling at the other

70 MPa (10,000 psi)

Interconnect hose 1.8 m (6 ft)

IQC70 male at both ends

70 MPa (10,000 psi)

Supply hose 1.8 m (6 ft)

IQC70 male at one end, and miniature QC at the other

20 MPa (3,000 psi)[2]

Notes:

1.    IQC70 is a Fluke Calibration interlocking quick connection nominally rated to 70 MPa (10,000 psi).

2.    Hose limited to 3,000 psi due to miniature QC used to connect to the fitting on the regulator.

Barometer Module Range

70 kPa to 110 kPa absolute (10 psi to 16 psi)

Pressure Transducer Module Ranges [1]

A150k

3.5 kPa to 150 kPa absolute (0.5 psi to 21.5 psi)

G700k

50 kPa to 700 kPa gauge (7 psi to 100 psi)

G10M

700 kPa to 10 MPa gauge (100 psi to 1,500 psi)

G70M

10 MPa to 70 MPa gauge (1,500 psi to 10,000 psi)

Resolution

To greater of 1 ppm of reading or of 1ppm of 4 psi (0.00004 psi or 2.5 Pa)

Gauge, Absolute,
or Vacuum

Range

Uncertainty[1]

Gauge[2]

-98 kPa to +25 kPa
(-14.2 to +4 psi)

±25 Pa (0.004 psi,
0.1 in H2O at 20°C)

25 kPa to 70 MPa
(4 to 10,000 psi)

±0.1 % of reading

Absolute

3.5 to 130 kPa
(0.5 to 19 psi) absolute

±25 Pa (0.004 psi,
0.1 in H2O at 20°C)

130 kPa to 70 MPa
(19 to 10,000 psi) absolute

±0.1 % of reading

Vacuum[2]

0 kPa to 98 kPa
(0 to 29 inHg)

±25 Pa (0.007 inHg)

Notes:
[1] Measurement uncertainty defined as the maximum deviation from the indicated value of measured pressure for 1 year after alignment including hysteresis, linearity, repeatability, stability, temperature, humidity effects, and calibration reference standard measurement uncertainty. Expression of uncertainty uses a coverage factor of 2 and conforms with the recommendations of the ISO Guide to the Expression of Uncertainty in Measurement.
[2] Negative gauge and vacuum pressure values assume the ambient atmospheric pressure is approximately 101 kPa (14.7 psi) absolute.

Control Precision

greater of ± 28 Pa (0.004 psi) or 0.025 % of reading

Pressure Source

Gauge, Absolute,
or Vacuum

Range

On-board Pump

Gauge[1]

-98 kPa (-14.2 psig) to
2 MPa (300 psig)

Absolute

3.5 kPa (0.5 psi) to
2 MPa (300 psi) absolute

Vacuum (negative gauge) [1]

0 to 98 kPa (29 inHg)

External Gas Supply

Gauge

28 kPa (4 psig) to
70 MPa (10,000 psig)

Absolute

130 kPa (19 psi) to
70 MPa (10,000 psi) absolute

[1] Negative gauge and vacuum pressure values assume the ambient atmospheric pressure is approximately 101 kPa (14.7 psi) absolute.

Measure Mode

Range

Time (seconds) [5]

Gauge [7]

<28 kPa (4 psig)

90 [1] [6]

28 to 700 kPa (4 to 100 psig)

30 [2]

700 kPa (100 psig) to 7 MPa (1,000 psig)

30 [3]

7 MPa (1,000 psig) to 70 MPa (10,000 psig)

60 [4]

Absolute

<14 kPa (2 psi) absolute

180 [1] [6]

14 to 130 kPa (2 to 19 psi) absolute

90 [1] [6]

130 to 700 kPa (19 to 100 psi) absolute

30 [2]

700 kPa (100 psi) to 7 MPa (1,000 psi)

30 [3]

7 MPa (1,000 psi) to 70 MPa (10,000 psi)

60 [4]

Vacuum [7]

>88 kPa (26 inHg) vacuum

180 [1] [6]

0 to 88 kPa (0 to 26 inHg) vacuum

90 [1] [6]

[1] Assumes 1pp cc test volume, uses on-board pump control
[2] Assumes 100 cc test volume with external gas supply.
[3] Assumes 50 cc test volume with external gas supply.
[4] Assumes 25 cc test volume with external gas supply.
[5] Set times assume pressure steps of no greater than 10% of target pressure and reflect time to ready using default control limits in dynamic control mode.
[6] Times for sub-atmospheric set points assume that the temperature is below the boiling point of any liquid in the UUT and CPS for the target pressure.
[7] Negative gauge and vacuum pressure values assume the ambient atmospheric pressure is approximately 101 kPa (14.7 psi) absolute.

型號(hào)

描述

4322-SYS

4322-CONTR, 4322-INTFR,  6 ft. (2 m) high-pressure interconnect hose, spare parts kit

4322-SYS-CE

4322-CONTR-CE, 4322-INTFR-CE,  6 ft. (2 m) high-pressure interconnect hose, spare parts kit

4322-SYS-USDOT

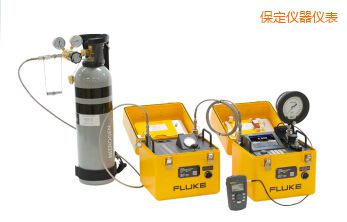

4322-CONTR, 4322-INTFR, 4322-CYL-USDOT, 6 ft. (2 m) high-pressure interconnect hose, spare parts kit

4322-SYS-NAVAIR

4322 Pressure Controller mainframe, 4322 Pressure Intensifier mainframe, US DOT nitrogen cylinder assembly, 4322 Accessory Kit with: blue CPS assembly, blue high pressure test hose, orange CPS assembly, orange high-pressure test hose, qty. 4 waste bottles, pressure regulator assembly, IQC70 adaptor kit (14 pieces), high-pressure interconnect hose, high-pressure supply hose, qty. 2 power cords, 4322 spare parts kit, PFTE tape, IEEE cable

4322-CONTR

4322 Pressure Controller  mainframe, blue CPS assembly, power cord, controller spare parts, IQC70 adaptors: ¼” NPT female, DH500 female (HiP HF4 equivalent) , qty. 2 x AN4 male

4322-CONTR-CE

4322 Pressure Controller Unit mainframe (CE configuration), blue CPS assembly, power cord, controller spare part, IQC70 adaptors: ¼” NPT female, DH500 female (HiP HF4 equivalent) , qty. 2 x AN4 male

4322-REM

4322 Remote Control Pendant, 10 ft. (3 m) remote pendant cable, switch test leads

4322-CYL-USDOT

Nitrogen cylinder certified to US DOT with shutoff valve, port plug and valve guard, carrying strap, pressure regulator assembly with pressure gauges, CGA 580 adaptor and supply hose quick connect coupler, additional CGA 580 ¼ in adaptor, 6 ft. (2 m) high-pressure supply hose

配件

描述

CASE-4322-ACCY

Ruggedized deep-drawn aluminum transport case with foam inserts to store and transport 4322 accessories

CPS-4322-BLUE

CPS accessory with blue color coding, 2 waste bottles

CPS-4322-ORANGE

CPS accessory with orange color coding, 2 waste bottles

KIT-4322-ADPT

Adaptor kit storage case with foam insert, IQC70 adaptors: 1/8 in NPT female, ¼ in NPT female, ½ in NPT female, 1/8 in NPT male, ¼ in NPT male, ½ in NPT male, DH500 female (HiP HF4 equivalent), DH500 male (HiP HM4 equivalent), 1/8 in ID hose barb, ¼ in ID hose barb, AN4 female, AN6 female, AN4 male, AN6 male

HOSE-4322-BLUE

10 ft (3 m) high-pressure test hose with blue color coding

HOSE-4322-ORANGE

10 ft (3 m) high-pressure test hose with orange color coding
